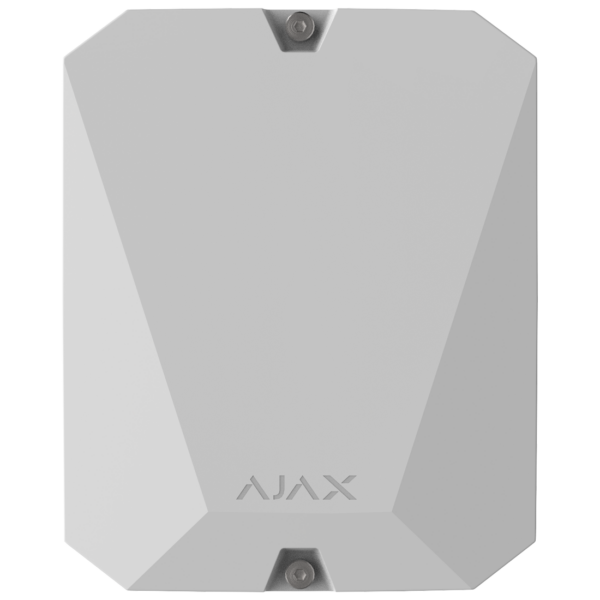

Ajax (44950) MultiTransmitter EOL – Module for Integrating Existing Wired Systems

Connection without limits – The updated version of MultiTransmitter supports NC, NO, EOL, 2EOL, and 3EOL connections.

This gives more freedom for installation engineers: any wired detector with dry contacts can be connected to the integration module.

More event types of wired devices – Intrusion – Fire Alarm – Medical Help – Gas Alarm – Tamper Alarm – Malfunction – Leakage – Custom Events The new version of MultiTransmitter allows you to connect wired water leaks detectors to the system.

Also, the device can now notify users about a service event, without sending the alarm to the security company’s monitoring station.

This can be useful to keep track of the water level in a reservoir or the state of smoke machine service outlets.

Extended EOL resistance value range Installation engineers can now install EOL resistors with resistances from 1 k? to 15 k? in 30 k? increments.

The use of non-standard resistance values strengthens protection against sabotage.

For the convenience of installation engineers, we have provided a tool in Ajax apps that measures the resistance of termination resistors and sets recommended values.

It also can be configured in Ajax apps manually with 100 ? increments.

Product details

• MPN: 44950.62.WH1
• Product type: Intruder Accessories
